Trackless Gantry Crane for Workshop Lifting Without Fixed Rails
YC Crane provides customized trackless gantry cranes for workshops, yards and production areas where fixed rails are not convenient. The crane can travel on suitable flat ground and is widely used for mold handling, equipment assembly, steel structure transfer and flexible workshop logistics.
Trackless Gantry Crane Solutions for Different Lifting Tasks
According to the load capacity, span, lifting height, travelling distance and ground condition, YC Crane can provide a complete trackless gantry crane system including gantry structure, hoist, travelling system, power system and control devices.
Trackless Gantry Crane
Movable gantry crane for flexible lifting where fixed runway or gantry rails are not suitable.
- No fixed rail foundation required
- Suitable for workshops and yards
- Custom span and lifting height
- Remote or pendant control available
Travelling & Power System
Wheel, drive and power systems can be matched with the working distance and site layout.
- Battery power optional
- Cable power optional
- Custom wheel and drive system
- Designed for ground condition
Processing & Assembly
Steel structure processing, assembly and test running can be completed according to project requirements.
- Custom steel structure fabrication
- Hoist and electrical assembly
- Factory test before delivery
- OEM manufacturing available
Flexible Lifting Without Fixed Crane Rails
Compared with traditional rail-mounted gantry cranes, trackless gantry cranes reduce civil construction work and give the user more flexible lifting positions. They are practical for production areas with changing routes, temporary lifting tasks or limited rail installation conditions.
Trackless Travelling
No fixed rail is required. The crane can move on suitable flat concrete ground and adapt to different working positions.
Integrated Lifting System
Electric hoist, gantry frame, travelling mechanism, power system and control system can be designed as one complete solution.
Safety-Oriented Design
Emergency stop, limit protection, warning light, brake, overload protection and anti-collision devices can be configured.
Designed for Flexible Lifting in Workshops and Outdoor Yards
Trackless gantry crane combines lifting, travelling and flexible positioning. It is useful when the working area changes frequently or when fixed rail foundation is not suitable.
- No fixed rail foundation required, reducing civil construction work.
- Suitable for indoor workshops, outdoor yards, assembly areas and maintenance sites.
- Can be equipped with CD/MD electric hoist, European hoist or customized lifting mechanism.
- Battery power, cable power or customized power supply can be selected according to site conditions.
- Remote control, pendant control, warning light, emergency stop and limit protection are available.
How to Choose the Right Trackless Gantry Crane?
The suitable trackless gantry crane should be selected according to the load, lifting area, travelling route, ground condition and power supply preference.
| Key Item | What to Confirm | Why It Matters |
|---|---|---|
| Lifting Load | Maximum load weight, load size, lifting frequency and load center. | Determines crane capacity, hoist model, frame strength and safety margin. |
| Working Area | Required span, lifting height, travelling distance and available turning space. | Determines gantry size, wheel layout and travelling system design. |
| Ground Condition | Concrete floor strength, flatness, slope, ground obstacles and outdoor/indoor use. | Affects wheel pressure, travelling stability and safe crane operation. |
| Power Supply | Battery power, cable power, charging method, voltage and operation time. | Determines daily operation convenience and travelling distance capability. |
| Control & Safety | Remote control, pendant control, warning devices, limit switch and emergency stop. | Improves operation safety and supports customized handling process. |
Trackless Gantry Crane Power and Travelling System
The travelling system and power system are key parts of a trackless gantry crane. We can design the wheel, steering, drive and power configuration according to your working distance, ground condition and operation frequency.
Power System
Customized power system for stable travelling and reliable lifting operation.
Drive System
Drive units can be selected according to travelling speed, load capacity and ground condition.
Wheel System
Heavy-duty wheel design supports flexible travelling on suitable workshop ground.

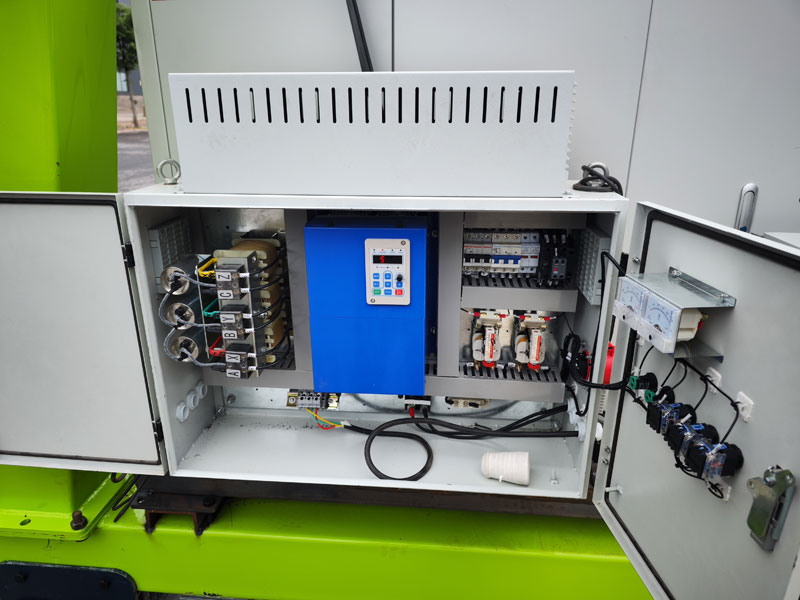

Electrical System
Electrical layout can include control box, protection devices and operation control system.

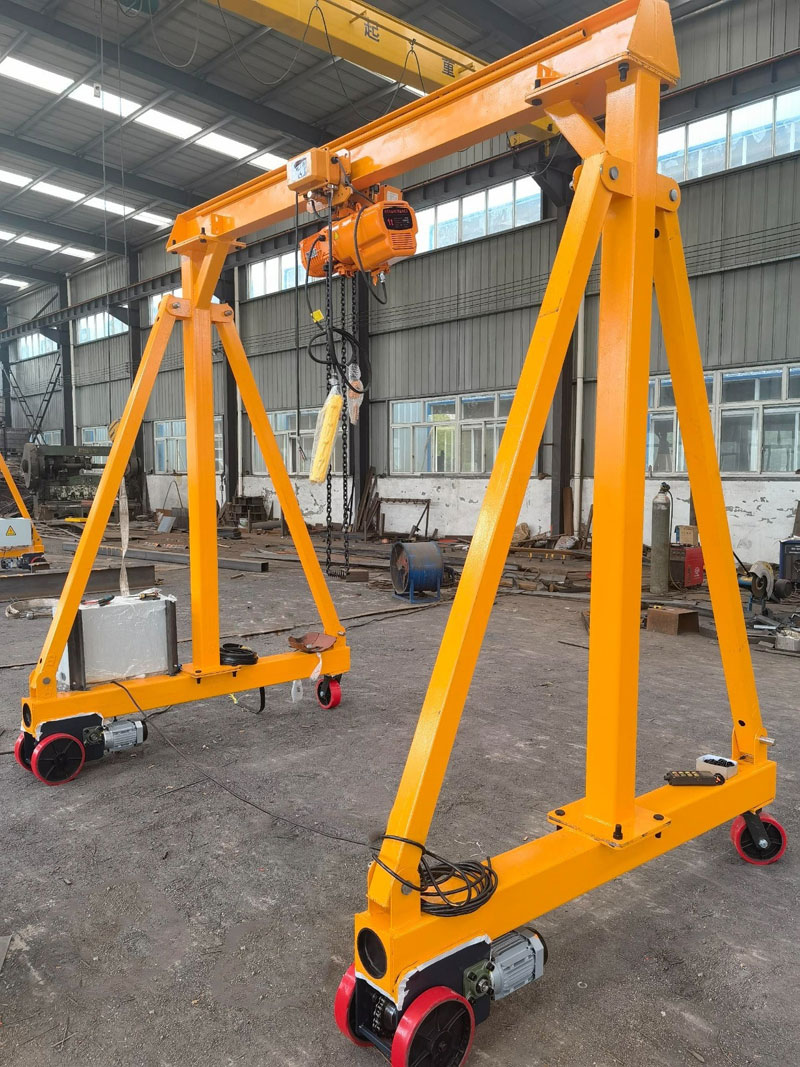

Finished Crane
Complete equipment can be tested before delivery to ensure stable operation.
Complete Structure
Gantry frame, hoist, travelling mechanism and power system work as one integrated unit.
Trackless Gantry Crane Processing and Assembly
From steel structure processing to assembly and testing, each trackless gantry crane can be manufactured according to the customer’s lifting requirement and site layout.
Where Trackless Gantry Crane Is Used
Workshop Material Handling
Used for lifting and moving machinery parts, molds, tools and production materials in open workshop areas.
Equipment Assembly
Suitable for equipment installation, assembly positioning, maintenance lifting and temporary lifting tasks.
Outdoor Yard Handling
Can be used in yards or temporary work areas where fixed gantry crane rails are not convenient.
Trackless Gantry Crane Specifications
The following parameters are for reference. The crane can be customized according to load capacity, span, lifting height, ground condition and travelling distance.
| Product Name | Trackless Gantry Crane |
|---|---|
| Lifting Capacity | 1T, 2T, 3T, 5T, 10T, 16T, 20T or customized |
| Span | Customized according to working area and load size |
| Lifting Height | Customized according to workshop height and lifting requirement |
| Lifting Mechanism | CD/MD electric hoist, European hoist or customized lifting mechanism |
| Travelling Type | Trackless ground travelling, no fixed rail required |
| Power Supply | Battery power, cable power or customized power supply system |
| Control Method | Pendant control, wireless remote control or customized control system |
| Safety Devices | Emergency stop, limit switch, brake, warning light, overload protection, anti-collision optional |
| Application | Workshop lifting, mold handling, equipment assembly, maintenance site, steel structure handling |
Send Your Working Condition, We Design the Right Gantry Crane
Load Details
Tell us lifting capacity, material size, load shape and lifting frequency.
Working Area
Send span, lifting height, travelling distance and ground condition.
Power & Control
Confirm battery power, cable power, remote control or other control requirements.
Fast Proposal
Our engineer provides a suitable design, technical proposal and quotation.
Request A Trackless Gantry Crane Quote
For a faster quotation, please send lifting capacity, span, lifting height, travelling distance, ground condition, power supply preference, control method and site photos or drawings if available.
Get A Free Quote
Our engineer will reply with a suitable trackless gantry crane design and price.
Frequently Asked Questions
What is a trackless gantry crane?
A trackless gantry crane is a movable gantry crane that travels on suitable flat ground without fixed rails. It is used for flexible lifting and material handling in workshops, yards and temporary working areas.
Does a trackless gantry crane need rail installation?
No. The main advantage of a trackless gantry crane is that it does not need fixed crane rails. It can travel on suitable flat ground according to the designed route.
What power supply can be used?
Battery power, cable power or customized power supply systems can be selected according to travelling distance, working frequency and site condition.
Can the capacity and span be customized?
Yes. Lifting capacity, span, lifting height, travelling speed, wheel system, power supply and control method can be customized according to your project.
What information do you need for quotation?
Please provide lifting capacity, span, lifting height, travelling distance, load size, working frequency, ground condition, power supply preference and site photos or drawings if available.
